Exact Pipe Cutting

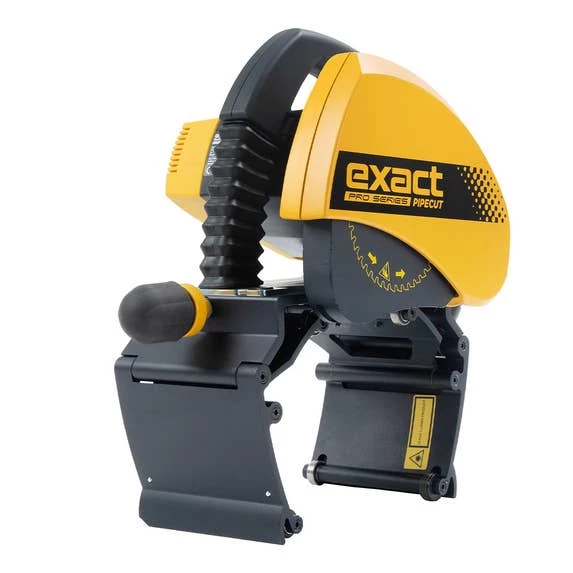

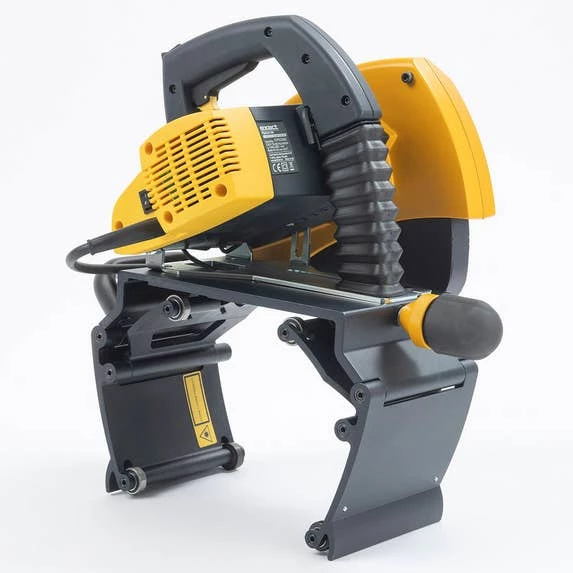

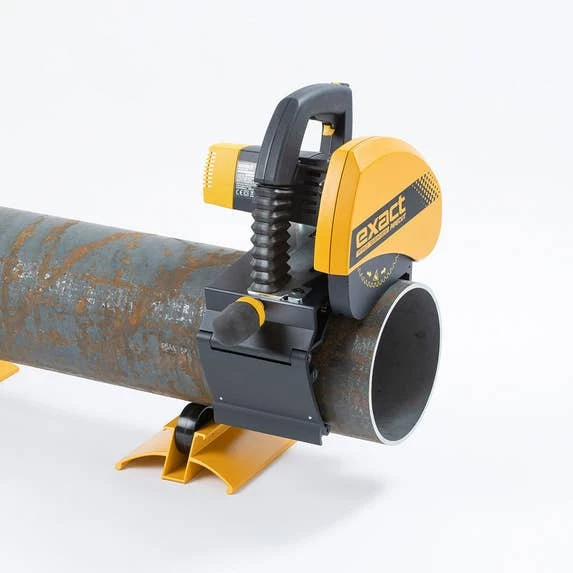

Exact PipeCut (0.8″ – 8.7″) 220 Pro Series Pipe Saw
This machine is the choice for you, when you need to cut any small to medium sized pipes of toughest and thickest
pipe materials you face.
FEATURES:
- User friendliness, extremely easy and convenient to use.
- Efficiency, extremely fast cuts.
- Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds.

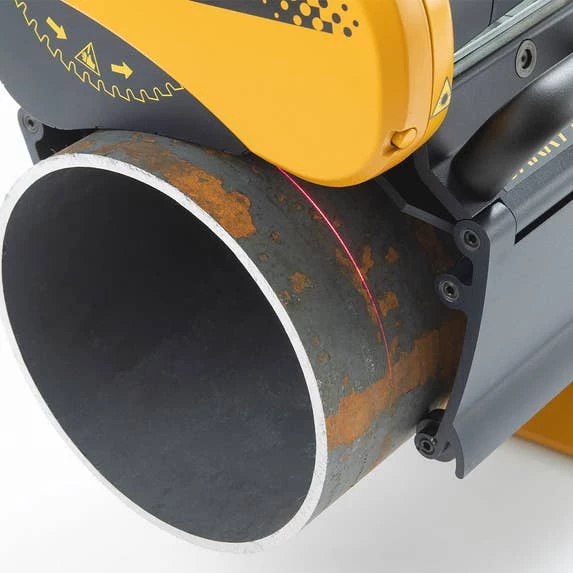

- Laser indicator for cutting point precision.
- Updated adjustment mechanism.
- Easy to carry, easy to move. The machine weighs only 11,5 kg (25 lbs).
SPECIFICATIONS:
| Pipe OD | 20mm – 220mm (0.8″ – 8.7″) |
|---|---|
| Max. wall thickness | 16 mm (0.6″) steel / 230V, 35 mm (1.4″) plastic |
| Pipe material | Acid-resistant steel, Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless steel, Steel |
| No-Load speed | I (low) = 1900/min, II (high) = 2885 /min |
| Mounting bore | 62mm (2.44″) |
| Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection | I = Stainless steel and acid-resistant steel, II = all other materials |
| Loading capacity of supports | 314 kg , 692 lb (4 supports) |
| Weight | 11,5 kg (25 lbs) |
INCLUDES:
- (1) PipeCut 220 Pro Series pipe saw
- (1) TCT 165 blade pre-installed
- (1) Shoulder bag
- (1) 2 mm Hex socket key fitted to the machine
- (1) 5 mm Hex socket key fitted to the machine
- (4) Pipe supports
