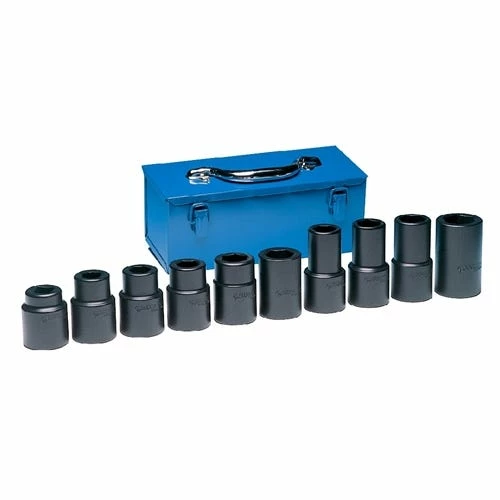

Grey Pneumatic Sockets Grey Pneumatic 10 Piece #5 Spline Drive 6-Point Standard & Deep Length Impact Socket Set (SAE & Metric) 9260

Grey Pneumatic

Grey Pneumatic 10 Piece #5 Spline Drive 6-Point Standard & Deep Length Impact Socket Set (SAE & Metric) 9260

Features

A special #5 spline drive set designed for servicing truck wheels. It contains a 13/16 square size for the budd wheel inner cap nuts; a 1-1/2″ outer budd nut size that has a incontrolled depthin hex end to help prevent contact with the wheel; a 33mm size for 10 hole hub piloted wheels; three (3) deep thin wall sizes; and other regular length impact sockets. 6 Point sizes: 7/8″; 15/16″; 1″; 1-3/16″ and 33mm std length; 1-1/16″; 1-1/8″ and 1-1/4″ thin wall deep; 1-1/2″ deep budd. 4 Point size includes: 13/16″ Square

Includes

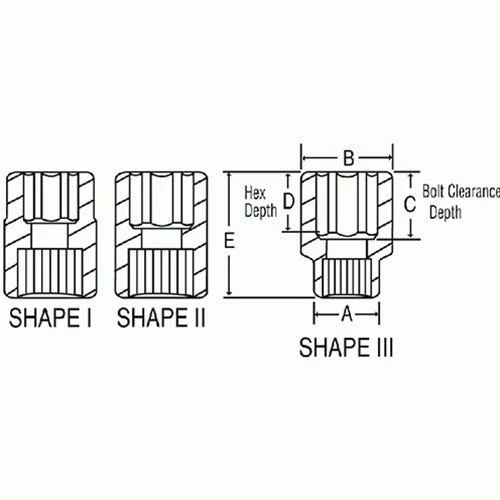

Item#	Size	SHP	A	B	C	D	E
5028R	7/8″	I	2.17	1.73	1.97	.94	3.15
5030R	15/16″	I	2.17	1.73	1.97	.94	3.15
5032R	1″	I	2.17	1.81	1.97	.94	3.15
5033M	33mm	II	55	55	50	24	80
5034DT	1-1/16″		2.13	1.67	2.99	.98	4.17
5036DT	1-1/8″		2.13	1.69	2.99	.98	4.17
5038R	1-3/16″	I	2.17	2.01	1.97	.94	3.15
5040DT	1-1/4″		2.13	1.85	2.99	.98	4.17
5048DB	1-1/2″		2.36	2.36	2.83	.55	4.02
5313S	13/16″		2.17	1.73		.94	2.68

“
