RIDGID Tools RIDGID SeeSnake 200′ HDR TruSense Mini Self-Leveling Color Camera Reel 63628

RIDGID

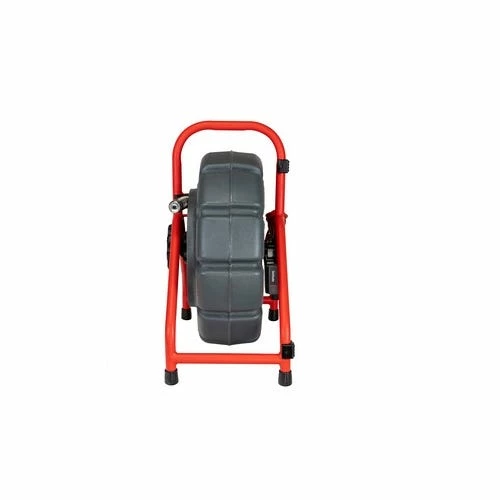

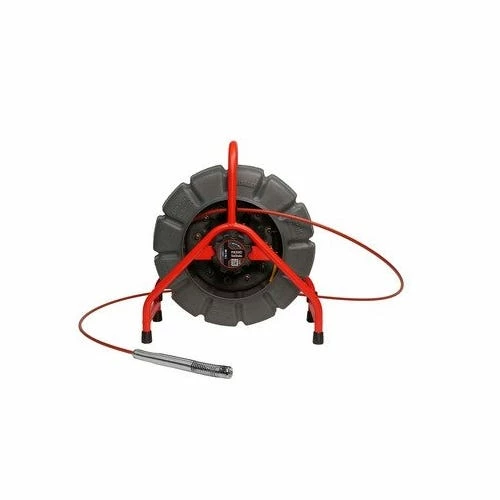

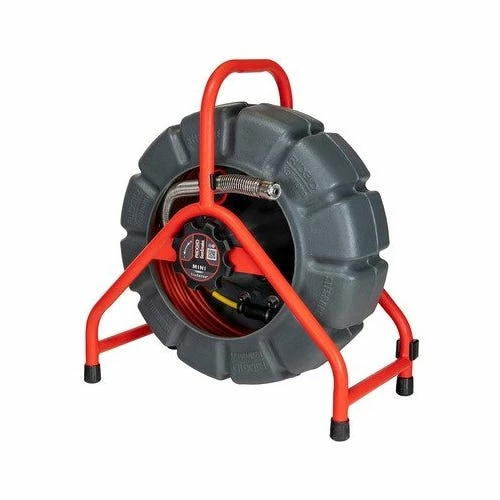

200′ Mini Self-Leveling Color Reel 63628

The SeeSnake Mini with TruSense provides down pipe visibility; vastly improved with High Dynamic Range (HDR); giving more clearly defined details of the pipe characteristics. The rugged; high-intensity LEDs provide exceptional viewing and longer life.

FEATURES:

• The SeeSnake Mini camera reel is the smaller version of the SeeSnake Standard system.
• Now available with TruSense technology.
• The Mini’s moderately stiff 200′ (61m) push cable strikes a good balance between stiffness and the ability to navigate turns.
• Rugged; high-intensity LEDs for exceptional viewing and long life.
• Self-leveling camera head keeps the image upright.
• Powerful FleXmitter sonde has long range and preserves the camera’s ability to make turns.
• High dynamic range (HDR) image sensor offers bright; clear in-pipe imaging in difficult lighting conditions.
• TiltSense displays the camera’s pitch in a pipe on a connected SeeSnake CSx series monitor.

SPECIFICATIONS:

Line Capacity	1 1/2 to 8″ (40 to 200 mm)
Maximum Run	200′ (61m)
Sonde	512 Hz
Weight (without monitor)	24.5 lbs. (11;1 kg)
Reel Frame Diameter	20″ (51 cm)
Camera Diameter	1.18″ (30 mm)
Camera Length	1.68″ (42 mm)
Push Cable Diameter	.31″ (8 mm)
Operating Temperature	-4° to 104°F (-20° to 40°C)
Waterproof Depth	330′ (100 m)
Video Resolution	656(H) x 492(V)
Number of Pixels	323K
Lighting	6 LEDs or 18 LEDs (for self-leveling model)

“
